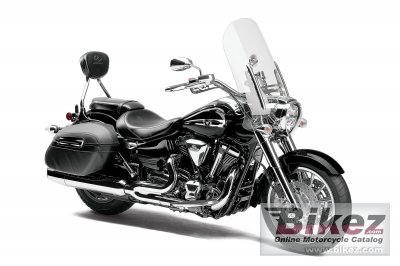

Yamaha's profilation of this bike |
A pair of streamlined leather-covered, locking, hard sidebags, an adjustable, quick-detachable windshield and a quick-detachable passenger backrest make the Stratoliner S excellent for long hauls and short trips. |
General information |
Model name
|
Yamaha Star Stratoliner S |
Year of manufacture
|
2012 |
Type
|
Touring |
Price as new | US$ 17390. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Engine size
|
1851.9 ccm (113.00 cubic inches) |
Type of engine
|
V2, four-stroke |
Engine details
|
48° V-twin |
Compression
|
9.5:1 |
Bore x stroke
|
100.0 x 118.0 mm (3.9 x 4.6 inches) |
Fuel system
|
Injection. Twin-Bore electronic fuel injection;throttle position sensor |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
TCI: Transistor Controlled Ignition |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Wet, multidisc |
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminum |
Rake (fork angle)
|
29.0° |
Front suspension
|
46mm telescopic fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
109 mm (4.3 inches) |
Front tire
|
130/70-18 |
Rear tire
|
190/60-17 |
Front brakes
|
Double disc. Hydraulic |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
320 mm (12.6 inches) |
Wheels
|
12-spoke cast |
Seat
|
Sculpted seat |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
363.8 kg (802.0 pounds) |
Seat height
|
706 mm (27.8 inches) If adjustable, lowest setting. |
Overall height
|
1514 mm (59.6 inches) |
Overall length
|
2581 mm (101.6 inches) |
Overall width
|
1100 mm (43.3 inches) |
Wheelbase
|
1715 mm (67.5 inches) |
Fuel capacity
|
17.03 litres (4.50 US gallons) |
Other specifications |
Color options
|
Intense Black |
Starter
|
Electric |
Instruments
|
Analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters and odometer. |
Factory warranty
|
1 Year (Limited Factory Warranty) |
Comments
|
Windshield |
