General information |
Motorcycle name
|

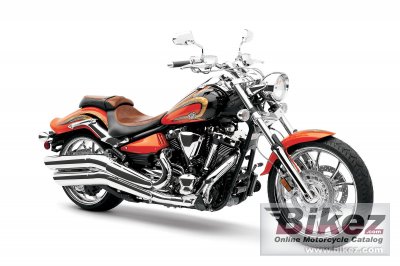

Yamaha Star Raider SCL |
Year of manufacture
|
2012 |
Type
|
Custom / cruiser |
Price as new | US$ 19990. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1851.9 ccm (113.00 cubic inches) |
Type of engine
|
V2, four-stroke |
Engine details
|
48° V-twin. Ceramic-composite plated cylinders. |
Compression
|
9.5:1 |
Bore x stroke
|
100.0 x 118.0 mm (3.9 x 4.6 inches) |
Fuel system
|
Injection. Computer-controlled, twin-bore fuel injection monitors multiple engine parameters to calculate perfect mixture under all conditions; wide-angle 12-hole fuel injectors provide excellent atomization. |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
TCI: Transistor Controlled Ignition |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Wet, multidisc |
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Emission details
|
Oxygen sensor and three-way catalyst |
Chassis, suspension, brakes and wheels |
Frame type
|
Double cradle. All-aluminum cast frame. |
Rake (fork angle)
|
29.0° |
Trail
|
102 mm (4.0 inches) |
Front suspension
|
Telescopic fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swingarm |
Rear wheel travel
|
89 mm (3.5 inches) |
Front tire
|
120/70-21 |
Rear tire
|
210/40-18 |
Front brakes
|
Double disc. Hydraulic |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc. Hydraulic |
Diameter
|
310 mm (12.2 inches) |
Wheels
|
5-spoke cast |
Seat
|
Sculpted seat |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
331.1 kg (729.9 pounds) |
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
Overall height
|
1166 mm (45.9 inches) |
Overall length
|
2570 mm (101.2 inches) |
Overall width
|
925 mm (36.4 inches) |
Ground clearance
|
147 mm (5.8 inches) |
Wheelbase
|
1801 mm (70.9 inches) |
Fuel capacity
|
15.90 litres (4.20 US gallons) |
Other specifications |
Color options
|
Blazing Orange |
Starter
|
Electric |
Instruments
|
Tank-mounted instrumentation. Analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters and odometer. |
Factory warranty
|
1 Year (Limited Factory Warranty) |
