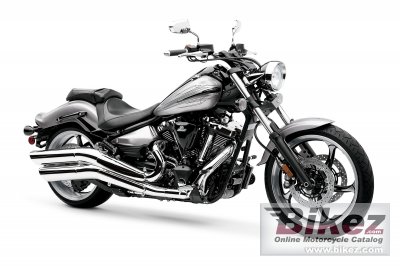

2012 Yamaha Star Raider

Yamaha Star Raider 2012


2012 Yamaha Star Raider specifications, pictures, reviews and rating

Yamaha's profilation of this bike
Four pushrod-activated valves and two spark plugs per cylinder provide optimum combustion efficiency along with classically beautiful engine architecture. Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. Provides outstanding reliability and longer engine life.

General information
Model name Yamaha Star Raider
Year model 2012
Type Custom / cruiser
Price as newUS$ 14590. MSRP depends on country, taxes, accessories, etc.
Rating 3.2  See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike.
Engine and transmission
Engine size 1851.9 ccm (113.00 cubic inches)
Type of engine V2, four-stroke
Engine details 48° V-twin. Ceramic-composite plated cylinders.
Compression 9.5:1
Bore x stroke 100.0 x 118.0 mm (3.9 x 4.6 inches)
Valves per cylinder 2
Fuel system Injection. Twin-Bore electronic fuel injection; throttle position sensor
Fuel control Overhead Valves (OHV)
Ignition TCI: Transistor Controlled Ignition
Cooling system Air
Gearbox 5-speed
Transmission type Belt (final drive)
Clutch Wet, multidisc
Fuel consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Greenhouse gases 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis, suspension, brakes and wheels
Frame type Double cradle
Rake (fork angle) 29.0°
Trail 102 mm (4.0 inches)
Front suspension Telescopic fork
Front wheel travel 130 mm (5.1 inches)
Rear suspension Swingarm
Rear wheel travel 89 mm (3.5 inches)
Front tire 120/70-21
Rear tire 210/40-18
Front brakes Double disc
Diameter 298 mm (11.7 inches)
Rear brakes Single disc
Diameter 310 mm (12.2 inches)
Wheels 5-spoke cast
Seat Sculpted seat
Physical measures and capacities
Weight incl. oil, gas, etc 331.1 kg (729.9 pounds)
Seat height 696 mm (27.4 inches) If adjustable, lowest setting.
Overall height 1166 mm (45.9 inches)
Overall length 2570 mm (101.2 inches)
Overall width 925 mm (36.4 inches)
Ground clearance 147 mm (5.8 inches)
Wheelbase 1801 mm (70.9 inches)
Fuel capacity 15.90 litres (4.20 US gallons)
Other specifications
Color options Nebulous Purple, Raven Black
Starter Electric
Instruments Tank-mounted instrumentation. Analog speedometer, tachometer and fuel gauge, along with twin digital tripmeters and odometer.
Factory warranty 1 Year (Limited Factory Warranty)
