General information |
|
Model
|

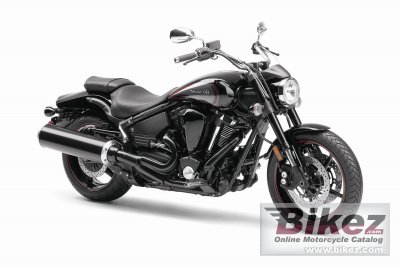

Yamaha Star Midnight Warrior |
|
Year
|
2012 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 13390. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
1671.6 ccm (102.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
48° V-twin. Hydraulic valve lifters driven by twin camshafts. |
|
Compression
|
8.4:1 |
|
Bore x stroke
|
97.0 x 113.0 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Twin-Bore electronic fuel injection; throttle position sensor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
TCI: Transistor Controlled Ignition |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
6.03 litres/100 km (16.6 km/l or 39.01 mpg) |
|
Greenhouse gases
|
139.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminum monoshock |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
102 mm (4.0 inches) |
|
Front suspension
|
41mm KYB inverted fork |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
Single shock |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Front tire
|
120/70-ZR18 |
|
Rear tire
|
200/50-ZR17 |
|
Front brakes
|
Double disc. Hydraulic |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
282 mm (11.1 inches) |
|
Wheels
|
5-spoke cast |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
294.8 kg (650.0 pounds) |
|
Seat height
|
714 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
2385 mm (93.9 inches) |
|
Overall width
|
935 mm (36.8 inches) |
|
Wheelbase
|
1666 mm (65.6 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Onyx |
|
Starter
|
Electric |
|
Instruments
|
Digital headlight-mounted tachometer, odometer and dual tripmeters with triple clamp-mounted analog speedometer. |
|
Carrying capacity
|
. |
|
Factory warranty
|
1 Year (Limited Factory Warranty) |
