Yamaha RZ 350 19841984 Yamaha RZ 350 specifications, pictures, reviews and rating |

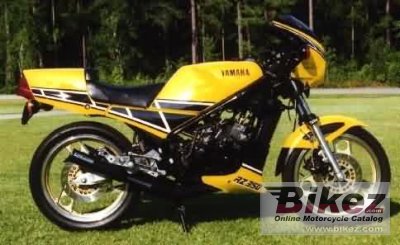

 1984 Yamaha RZ 350. Picture submitted by anonymous user.. Submit more pictures.
|
| General information | |
|---|---|
| Model | Yamaha RZ 350 |
| Model year | 1984 |
| Category | Sport |
| Rating | 3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 347.0 ccm (21.17 cubic inches) |
| Engine type | Twin, two-stroke |
| Compression | 6.0:1 |
| Bore x stroke | 64.0 x 54.0 mm (2.5 x 2.1 inches) |
| Fuel system | Carburettor. MIKUNI VM26SS/2 |
| Ignition | C.D.I. |
| Lubrication system | Separate lubrication (Yamaha Autolube) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Exhaust system | dual exhaust |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular, double-cradle |
| Rake (fork angle) | 26.0° |
| Trail | 96 mm (3.8 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 100 mm (3.9 inches) |
| Front tire | 90/90-18 51H |
| Rear tire | 110/80-18 58H |
| Front brakes | Double disc |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 168.0 kg (370.4 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1175 mm (46.3 inches) |
| Overall length | 2120 mm (83.5 inches) |
| Overall width | 710 mm (28.0 inches) |
| Ground clearance | 175 mm (6.9 inches) |
| Wheelbase | 1385 mm (54.5 inches) |
| Fuel capacity | 20.00 litres (5.28 US gallons) |
| Reserve fuel capacity | 2.00 litres (0.53 US gallons) |
| Other specifications | |
| Color options | Yellow/Black White/Red |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 84 Yamaha RZ 350 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1984 Yamaha RZ 350 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Offroad capabilities for the 1984 Yamaha RZ 350:  (25.8 out of 100)Click here for complete rating. You can also compare bikes. |
|
