1986 Yamaha RD 500 LC

Yamaha RD 500 LC 1986


1986 Yamaha RD 500 LC specifications, pictures, reviews and rating

1986 Yamaha RD 500 LC

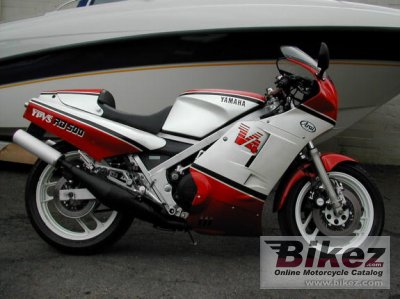

1986 Yamaha RD 500 LC. Picture credits - A. Goolem. Submit more pictures.
General information
Model Yamaha RD 500 LC
Model year 1986
Category Sport
Rating 3.5  Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike.
Engine and transmission
Displacement 499.0 ccm (30.45 cubic inches)
Engine type V4, two-stroke
Power output 88.0 HP (64.2 kW)) @ 9500 RPM
Top speed 223.0 km/h (138.6 mph)
Compression 6.6:1
Bore x stroke 56.4 x 50.0 mm (2.2 x 2.0 inches)
Fuel control Membrane & power valve
Cooling system Liquid
Gearbox 6-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire 120/80-16
Rear tire 130/80-18
Front brakes Dual disc
Rear brakes Single disc
Physical measures and capacities
Weight incl. oil, gas, etc 216.0 kg (476.2 pounds)
Fuel capacity 22.00 litres (5.81 US gallons)
Other specifications
Update specsReport missing specs or required updates.
Further information
Insurance costsCompare US insurance quotes from the nation's top providers.
Parts finderCMSNL provides online schematics & OEM partsParts and ships to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
MaintenanceFind parts, fluids. filters, maintenance tools and service manuals at Amazon.com.
Ask questionsJoin the 86 Yamaha RD 500 LC discussion group or the general Yamaha discussion group.
Related bikesList related bikes for comparison of specs.
Compare with another motorcycle
Year
Brand
Model





Buying a bike starts at Bikez

Get a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1986 Yamaha RD 500 LC for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.


Rating sample for this Yamaha bike
Offroad capabilities for the 1986 Yamaha RD 500 LC:

Vote scale
bar (30.4 out of 100)

Click here for complete rating.
