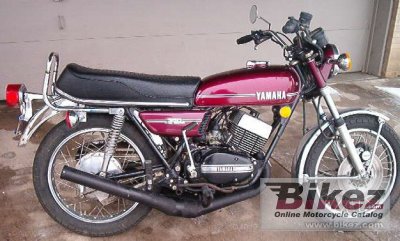

Yamaha RD 350 (6-speed) 19741974 Yamaha RD 350 (6-speed) specifications, pictures, reviews and rating |
.jpg "1974 Yamaha RD 350 (6-speed)")
| General information | |
|---|---|
| Model | Yamaha RD 350 (6-speed) |
| Year | 1974 |
| Category | Classic |
| Rating | 3.9 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 347.0 ccm (21.17 cubic inches) |
| Engine type | Twin, two-stroke |
| Engine details | Reed valve. |
| Power | 39.0 HP (28.5 kW)) @ 7500 RPM |
| Torque | 32.7 Nm (3.3 kgf-m or 24.1 ft.lbs) @ 7000 RPM |
| Top speed | 180.0 km/h (111.8 mph) |
| Compression | 6.6:1 |
| Bore x stroke | 64.0 x 54.0 mm (2.5 x 2.1 inches) |
| Fuel system | Carburettor. Mikuni VM28 SC |
| Fuel control | Membrane |
| Ignition | Dual coils, breaker points |
| Lubrication system | Automatic oil injection |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-plate |
| Driveline | Constant mesh |
| Fuel consumption | 7.15 litres/100 km (14.0 km/l or 32.90 mpg) |
| Greenhouse gases | 165.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular, double cradle |
| Rake (fork angle) | 27.5° |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Telescopic forks |
| Rear suspension | Dual shocks |
| Front tire | 3.00-18 |
| Rear tire | 3.25-18 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Expanding brake |
| Diameter | 178 mm (7.0 inches) |
| Physical measures and capacities | |
| Dry weight | 155.0 kg (341.7 pounds) |
| Weight incl. oil, gas, etc | 162.0 kg (357.1 pounds) |
| Power/weight ratio | 0.2516 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall length | 2057 mm (81.0 inches) |
| Overall width | 990 mm (39.0 inches) |
| Ground clearance | 163 mm (6.4 inches) |
| Wheelbase | 1321 mm (52.0 inches) |
| Fuel capacity | 16.00 litres (4.23 US gallons) |
| Other specifications | |
| Color options | Maroon |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Spark plugs | NGK B8HS |
| Chain size | 530 |
| Chain links | 92 |
| Sprockets | 15/40 (front/rear) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
