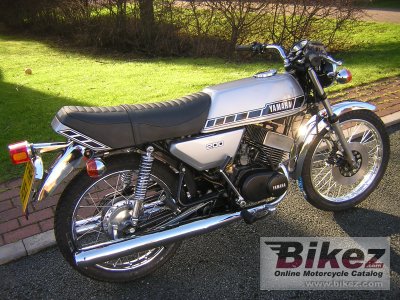

1977 Yamaha RD 200 DX. Dave Ellis.
General information
Motorcycle name
Yamaha RD 200 DX
Year
1977
Category
Classic
Rating
2.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike.
Engine and transmission
Displacement
195.0 ccm (11.90 cubic inches)
Engine type
Twin, two-stroke
Power
17.0 HP (12.4 kW )) @ 7700 RPM
Top speed
122.0 km/h (75.8 mph)
Compression
7.1:1
Bore x stroke
52.0 x 46.0 mm (2.0 x 1.8 inches)
Fuel control
Membrane
Cooling system
Air
Gearbox
5-speed
Transmission type
Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire
2.75-18
Rear tire
3.25-18
Front brakes
Single disc
Rear brakes
Expanding brake
Physical measures and capacities
Weight incl. oil, gas, etc
132.0 kg (291.0 pounds)
Fuel capacity
11.50 litres (3.04 US gallons)
