Yamaha's profilation of this bike |
The Raptor 90 has the features to deliver more fun than ever before, with an 88cc SOHC 2-valve engine tuned to develop excellent low-to-mid rpm range performance. |
General information |
Model
|

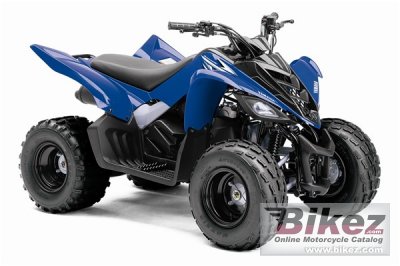

Yamaha Raptor 90 |
Year model
|
2011 |
Type
|
ATV |
Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
88.0 ccm (5.37 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
10.2:1 |
Bore x stroke
|
47.0 x 51.0 mm (1.9 x 2.0 inches) |
Valves per cylinder
|
2 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC-CDI |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Front wheel travel
|
127 mm (5.0 inches) |
Rear suspension
|
Swingarm |
Rear wheel travel
|
127 mm (5.0 inches) |
Front tire
|
18/7-Ma8 |
Rear tire
|
18/9-Ma8 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
119.8 kg (264.0 pounds) |
Seat height
|
653 mm (25.7 inches) If adjustable, lowest setting. |
Overall height
|
909 mm (35.8 inches) |
Overall length
|
1491 mm (58.7 inches) |
Overall width
|
884 mm (34.8 inches) |
Ground clearance
|
99 mm (3.9 inches) |
Fuel capacity
|
4.92 litres (1.30 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White, White w/Graphics Kit |
Starter
|
Electric & kick |
Light
|
None |
Factory warranty
|
6 Month (Limited Factory Warranty) |
