Yamaha Raptor 90 20102010 Yamaha Raptor 90 specifications, pictures, reviews and rating |

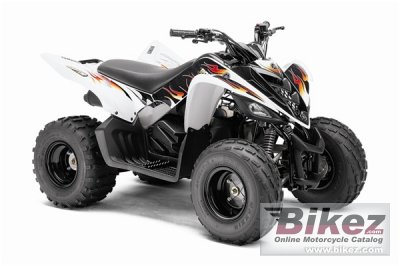

 2010 Yamaha Raptor 90. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The Raptor 90 has the features to deliver more fun than ever before, with an 88cc SOHC 2-valve engine tuned to develop excellent low-to-mid rpm range performance. It also has features surprising in this class and price range, like a fully automatic CVT transmission, dual A-arm front suspension, rear disc brake, low-profile tires, and styling unmistakably inspired by the mighty Raptor 700R. |
| General information | |
|---|---|
| Model name | Yamaha Raptor 90 |
| Year model | 2010 |
| Type | ATV |
| Price as new | US$ 2699. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 88.0 ccm (5.37 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 10.2:1 |
| Bore x stroke | 47.0 x 51.0 mm (1.9 x 2.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. SVR22 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 18/7-8 |
| Rear tire | 18/9-8 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 119.7 kg (264.0 pounds) |
| Seat height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Overall height | 909 mm (35.8 inches) |
| Overall length | 1491 mm (58.7 inches) |
| Overall width | 884 mm (34.8 inches) |
| Fuel capacity | 4.92 litres (1.30 US gallons) |
| Other specifications | |
| Color options | White w/Graphics Kit |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
