General information |
|
Model
|

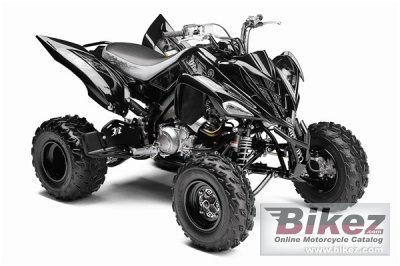

Yamaha Raptor 700R SE |
|
Year of manufacture
|
2011 |
|
Type
|
ATV |
| Price as new | US$ 8999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
686.0 ccm (41.86 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
|
Fuel system
|
Injection. Yamaha Fuel Injection (YFI), 44mm |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
16-Bit ECU |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
2WD, reverse; sealed O-ring chain, eccentric adjustment |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel |
|
Rear suspension
|
Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment, 10.1-in travel |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
191.4 kg (422.0 pounds) |
|
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
|
Overall length
|
1844 mm (72.6 inches) |
|
Overall width
|
1171 mm (46.1 inches) |
|
Ground clearance
|
112 mm (4.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
10.98 litres (2.90 US gallons) |
|
Other specifications |
|
Color options
|
Black Metallic |
|
Light
|
Dual 30W Krypton multi-reflector headlights and 3.9/0.5W LED brakelight |
|
Factory warranty
|
6 Month (Limited Factory Warranty) |
