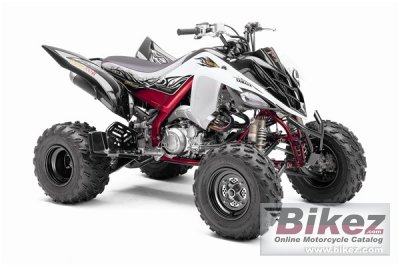

Yamaha Raptor 700R SE 20102010 Yamaha Raptor 700R SE specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| A radical appearance package, wave-style rear brake disc, GYTR® front grab bar and heel guards. Sport-tuned piggyback shocks provide longer stroke for excellent sport-riding comfort, and are fully adjustable with convenient adjustment knobs to fine-tune the ride. |
| General information | |
|---|---|
| Motorcycle name | Yamaha Raptor 700R SE |
| Year model | 2010 |
| Type | ATV |
| Price as new | US$ 8799. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 686.0 ccm (41.86 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.2:1 |
| Bore x stroke | 102.0 x 84.0 mm (4.0 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Yamaha Fuel Injection (YFI), 44mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | 16-Bit ECU |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel |
| Rear suspension | Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment, 10.1-in travel |
| Front tire | 21/7-12 |
| Rear tire | 20/10-9 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 191.4 kg (422.0 pounds) |
| Seat height | 813 mm (32.0 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 1844 mm (72.6 inches) |
| Overall width | 1171 mm (46.1 inches) |
| Ground clearance | 112 mm (4.4 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 10.97 litres (2.90 US gallons) |
| Other specifications | |
| Color options | Black/White |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
