Yamaha's profilation of this bike |
America’s best-selling sport ATV becomes the first with a digital meter. Riders have plenty of information available at a glance, including speedometer, dual trip meters, odometer, clock and engine warning indicators, plus neutral and reverse indicators.
|
General information |
Model name
|

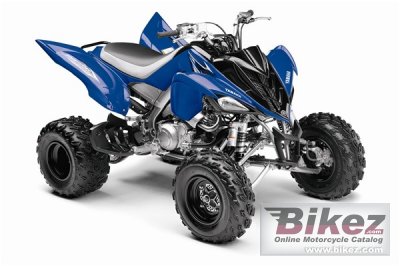

Yamaha Raptor 700R |
Model year
|
2009 |
Category
|
ATV |
Price as new | US$ 7599. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
686.0 ccm (41.86 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
102.0 x 84.0 mm (4.0 x 3.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Yamaha Fuel Injection (YFI) , 44mm |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
16-Bit ECU |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone w/piggy back High-/Lo-speed compression, rebound and threaded preload adjustment, 9.1-in travel |
Rear suspension
|
Cast aluminum swing arm w/rebound, High-/Lo-speed compression and threaded preload adjustment, 10.1-in travel |
Front tire
|
21/7-10 |
Rear tire
|
20/10-9 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Dry weight
|
179.6 kg (396.0 pounds) |
Seat height
|
813 mm (32.0 inches) If adjustable, lowest setting. |
Overall height
|
1130 mm (44.5 inches) |
Overall length
|
1844 mm (72.6 inches) |
Overall width
|
1171 mm (46.1 inches) |
Ground clearance
|
112 mm (4.4 inches) |
Wheelbase
|
1280 mm (50.4 inches) |
Fuel capacity
|
10.97 litres (2.90 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White, White/Red |
Starter
|
Electric |
Comments
|
2WD |
