General information |
Model name
|

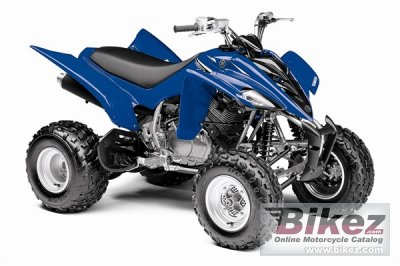

Yamaha Raptor 350 |
Year model
|
2011 |
Type
|
ATV |
Price as new | US$ 5499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
348.0 ccm (21.23 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.2:1 |
Bore x stroke
|
83.0 x 64.5 mm (3.3 x 2.5 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Mikuni 36mm BSR |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC - CDI |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
2WD; sealed O-ring chain |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Rear suspension
|
Swingarm |
Front tire
|
21/7-10 |
Rear tire
|
20/10-9 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
179.6 kg (396.0 pounds) |
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
Overall height
|
1080 mm (42.5 inches) |
Overall length
|
1770 mm (69.7 inches) |
Overall width
|
1095 mm (43.1 inches) |
Ground clearance
|
114 mm (4.5 inches) |
Wheelbase
|
1209 mm (47.6 inches) |
Fuel capacity
|
9.08 litres (2.40 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
Starter
|
Electric |
Light
|
Dual 30W Krypton multireflector headlights and 21/5W brakelight |
Factory warranty
|
6 Month (Limited Factory Warranty) |
