General information |
|
Motorcycle name
|

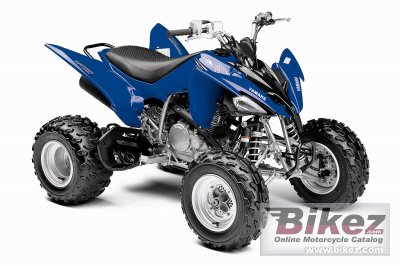

Yamaha Raptor 250R |
|
Model year
|
2012 |
|
Category
|
ATV |
| Price as new | US$ 5099. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
249.0 ccm (15.19 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Ceramic-composite cylinder liner |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
74.0 x 58.0 mm (2.9 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni 29mm BSR |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate |
|
Driveline
|
2WD; sealed O-ring chain, eccentric adjustment |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Front wheel travel
|
191 mm (7.5 inches) |
|
Rear suspension
|
Swingarm, preload-adjustable |
|
Rear wheel travel
|
201 mm (7.9 inches) |
|
Front tire
|
20/7-10 |
|
Rear tire
|
19/10-9 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
149.7 kg (330.0 pounds) |
|
Seat height
|
729 mm (28.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1039 mm (40.9 inches) |
|
Overall length
|
1626 mm (64.0 inches) |
|
Overall width
|
1069 mm (42.1 inches) |
|
Ground clearance
|
99 mm (3.9 inches) |
|
Wheelbase
|
1110 mm (43.7 inches) |
|
Fuel capacity
|
9.08 litres (2.40 US gallons) |
|
Other specifications |
|
Color options
|
Team Yamaha Blue/White w/Piggyback Shocks |
|
Starter
|
Electric |
|
Light
|
Dual 30W Krypton multireflector headlights and 21/5W brakelight |
|
Factory warranty
|
6 Month (Limited Factory Warranty) |
