Yamaha's profilation of this bike |
Lightest weight in its class provides amazingly nimble handling and a great power-to-weight ratio. |
General information |
Model
|

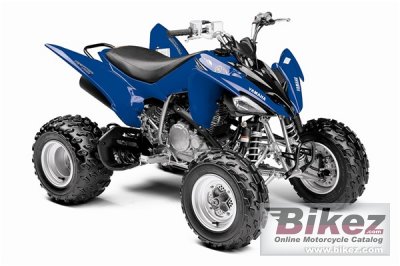

Yamaha Raptor 250R |
Model year
|
2011 |
Category
|
ATV |
Price as new | US$ 5099. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
249.0 ccm (15.19 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
74.0 x 58.0 mm (2.9 x 2.3 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Mikuni 29mm BSR |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC-CDI |
Cooling system
|
Oil & air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Driveline
|
2WD; sealed O-ring chain, eccentric adjustment |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Front wheel travel
|
191 mm (7.5 inches) |
Rear suspension
|
Swingarm, preload-adjustable, |
Rear wheel travel
|
201 mm (7.9 inches) |
Front tire
|
20/7-10 |
Rear tire
|
19/10-9 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
149.7 kg (330.0 pounds) |
Seat height
|
729 mm (28.7 inches) If adjustable, lowest setting. |
Overall height
|
1039 mm (40.9 inches) |
Overall length
|
1626 mm (64.0 inches) |
Overall width
|
1069 mm (42.1 inches) |
Ground clearance
|
99 mm (3.9 inches) |
Wheelbase
|
1110 mm (43.7 inches) |
Fuel capacity
|
9.08 litres (2.40 US gallons) |
Other specifications |
Color options
|
Blue/white |
Starter
|
Electric |
Light
|
Dual 30W Krypton multireflector headlights and 21/5W brakelight |
Factory warranty
|
6 Month (Limited Factory Warranty) |
