Yamaha Raptor 250 20122012 Yamaha Raptor 250 specifications, pictures, reviews and rating |

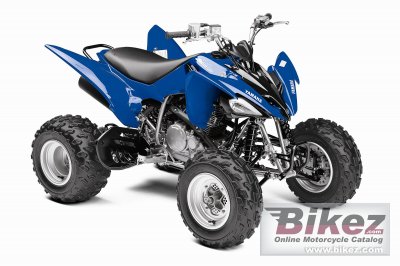

2012 Yamaha Raptor 250. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| Big Raptor style and Raptor-inspired seat mean maximum rider comfort and movement with excellent sport-riding ergonomics. |
| General information | |
|---|---|
| Model name | Yamaha Raptor 250 |
| Year of manufacture | 2012 |
| Type | ATV |
| Price as new | US$ 4599. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 249.0 ccm (15.19 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 74.0 x 58.0 mm (2.9 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni 29mm BSR |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate |
| Driveline | 2WD; sealed O-ring chain, eccentric adjustment |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 191 mm (7.5 inches) |
| Rear suspension | Swingarm, preload-adjustable |
| Rear wheel travel | 201 mm (7.9 inches) |
| Front tire | 20/7-10 |
| Rear tire | 19/10-9 |
| Front brakes | Double disc. Hydraulic |
| Rear brakes | Single disc. Hydraulic |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 149.7 kg (330.0 pounds) |
| Seat height | 729 mm (28.7 inches) If adjustable, lowest setting. |
| Overall height | 1039 mm (40.9 inches) |
| Overall length | 1626 mm (64.0 inches) |
| Ground clearance | 99 mm (3.9 inches) |
| Wheelbase | 1110 mm (43.7 inches) |
| Fuel capacity | 9.08 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White, White w/Custom Graphic |
| Starter | Electric |
| Light | Dual 30W Krypton multireflector headlights and 21/5W brakelight |
| Factory warranty | 6 Month (Limited Factory Warranty) |
