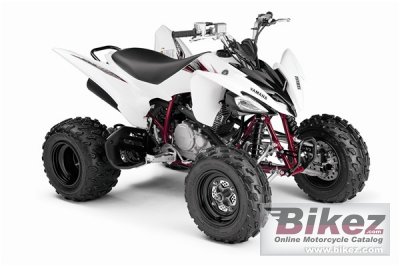

Yamaha Raptor 250 20092009 Yamaha Raptor 250 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Lightest production sport ATV ever provides amazingly nimble handling and a great power-to-weight ratio. |
| General information | |
|---|---|
| Motorcycle name | Yamaha Raptor 250 |
| Year of manufacture | 2009 |
| Type | ATV |
| Price as new | US$ 4199. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 249.0 ccm (15.19 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 74.0 x 58.0 mm (2.9 x 2.3 inches) |
| Fuel system | Carburettor. Mikuni® 29mm BSR |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Rear suspension | Swingarm, preload-adjustable, 7.9-in travel |
| Front tire | 20/7-10 |
| Rear tire | 19/10-12 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 142.0 kg (313.0 pounds) |
| Seat height | 729 mm (28.7 inches) If adjustable, lowest setting. |
| Overall height | 1039 mm (40.9 inches) |
| Overall length | 1626 mm (64.0 inches) |
| Overall width | 1069 mm (42.1 inches) |
| Ground clearance | 99 mm (3.9 inches) |
| Wheelbase | 1110 mm (43.7 inches) |
| Fuel capacity | 9.08 litres (2.40 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White, White/Red |
| Starter | Electric |
| Comments | Drivetrain: 2WD; sealed O-ring chain, eccentric adjustment. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha Raptor 250 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
