General information |
|
Model
|

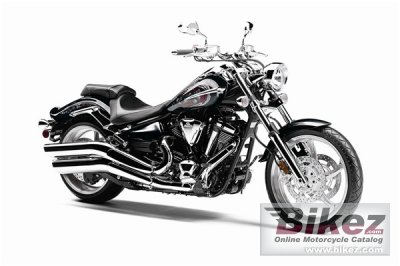

Yamaha Raider S |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15290. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
4.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1851.9 ccm (113.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Ceramic-composite plated cylinders for superior heat dissipation with forged pistons cooled by oil jets. |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
100.0 x 118.0 mm (3.9 x 4.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Twin-Bore electronic fuel injection; throttle position sensor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
TCI: Transistor Controlled Ignition |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Emission details
|
0xygen sensor and three-way catalyst reduce emissions. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
All-aluminum cast frame. Aluminum swingarm casting. |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Front tire
|
120/70-21 |
|
Rear tire
|
210/40-18 |
|
Front brakes
|
Double disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Wheels
|
5-spoke cast |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
331.1 kg (730.0 pounds) |
|
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1166 mm (45.9 inches) |
|
Overall length
|
2570 mm (101.2 inches) |
|
Overall width
|
925 mm (36.4 inches) |
|
Wheelbase
|
1801 mm (70.9 inches) |
|
Fuel capacity
|
15.90 litres (4.20 US gallons) |
|
Other specifications |
|
Color options
|
Raven, Glacier Blue |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted instrumentation complements the custom look, and contains analog speedometer and fuel gauge, along with twin digital tripmeters, odometer and self-diagnostics. |
|
Factory warranty
|
1 Year (Limited Factory Warranty) |
