Yamaha Raider 20092009 Yamaha Raider specifications, pictures, reviews and rating |

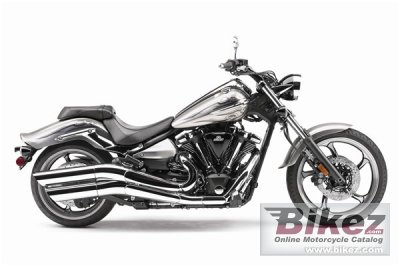

2009 Yamaha Raider. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| The Raider was inspired by the custom chopper movement, but since it’s a Star, it had to also handle, stop and go. |
| General information | |
|---|---|
| Motorcycle name | Yamaha Raider |
| Year | 2009 |
| Category | Custom / cruiser |
| Price as new | US$ 13799. MSRP depends on country, taxes, accessories, etc. |
| Rating | 4.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1851.9 ccm (113.00 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 100.0 x 118.0 mm (3.9 x 4.6 inches) |
| Fuel system | Injection. Twin-Bore electronic fuel injection; throttle position sensor |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Transistor Controlled Ignition |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 89 mm (3.5 inches) |
| Front tire | 120/70-21 |
| Rear tire | 210/40-18 |
| Front brakes | Double disc |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc |
| Diameter | 310 mm (12.2 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 331.1 kg (730.0 pounds) |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall height | 1166 mm (45.9 inches) |
| Overall length | 2570 mm (101.2 inches) |
| Overall width | 925 mm (36.4 inches) |
| Wheelbase | 1801 mm (70.9 inches) |
| Fuel capacity | 15.89 litres (4.20 US gallons) |
| Other specifications | |
| Color options | Liquid silver w/flames, Raven |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha Raider discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
