Yamaha PW 80 20062006 Yamaha PW 80 specifications, pictures, reviews and rating |

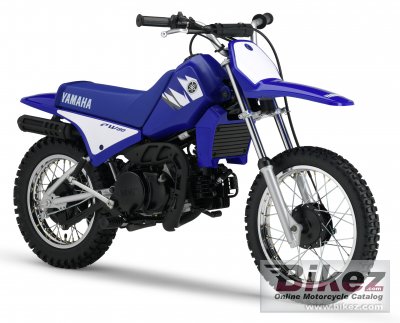

 2006 Yamaha PW 80. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Everything about the popular PW80 has been designed to make off road riding even more fun! Handlebar-mounted brake levers make transition from a bicycle to a motorcycle easy, and the 3-speed semi-automatic gearbox means there’s no clutch lever to worry about. And with its responsive 80cc 2-stroke engine, plush suspension and racy styling, your kids will never want to leave home without the PW80! |
| General information | |
|---|---|
| Model | Yamaha PW 80 |
| Year | 2006 |
| Category | Minibike, cross |
| Rating | 3.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 79.0 ccm (4.82 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 4.7 HP (3.4 kW)) @ 5500 RPM |
| Torque | 6.3 Nm (0.6 kgf-m or 4.6 ft.lbs) |
| Compression | 6.6:1 |
| Bore x stroke | 47.0 x 45.8 mm (1.9 x 1.8 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Monocross |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 70/90-M17 |
| Rear tire | 90/90-M14 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 57.0 kg (125.7 pounds) |
| Power/weight ratio | 0.0823 HP/kg |
| Seat height | 635 mm (25.0 inches) If adjustable, lowest setting. |
| Overall height | 880 mm (34.6 inches) |
| Overall length | 1540 mm (60.6 inches) |
| Overall width | 640 mm (25.2 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1055 mm (41.5 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Other specifications | |
| Starter | Kick |
