Yamaha's profilation of this bike |
Great for fun younger riders, the PW80 is powered by a 79cc, 2-stroke engine. A smooth-shifting, 3-speed transmission with automatic clutch (designed to ease the beginner into the basics of shifting) helps make riding simpler. |
General information |
Motorcycle name
|

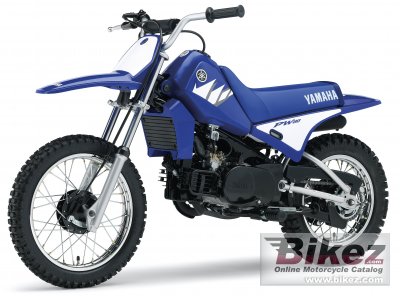

Yamaha PW 80 |
Year model
|
2005 |
Type
|
Minibike, cross |
Price as new | US$ 1249. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.7 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
79.0 ccm (4.82 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Compression
|
6.6:1 |
Bore x stroke
|
47.0 x 45.6 mm (1.9 x 1.8 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Air |
Gearbox
|
3-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
109 mm (4.3 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
94 mm (3.7 inches) |
Front tire
|
70/100-19 |
Rear tire
|
90/100-14 |
Front brakes
|
Expanding brake (drum brake) |
Diameter
|
95 mm (3.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
Overall height
|
879 mm (34.6 inches) |
Overall length
|
1539 mm (60.6 inches) |
Overall width
|
640 mm (25.2 inches) |
Ground clearance
|
185 mm (7.3 inches) |
Wheelbase
|
1054 mm (41.5 inches) |
Fuel capacity
|
4.92 litres (1.30 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
