Yamaha PW 50 20062006 Yamaha PW 50 specifications, pictures, reviews and rating |

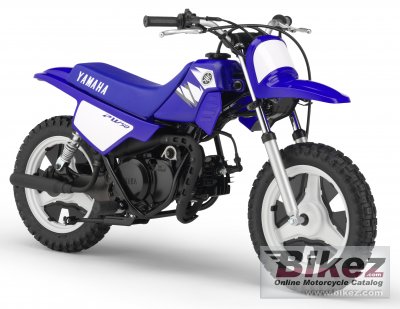

2006 Yamaha PW 50. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| Take a close look at the amazing little PW50 from Yamaha and you’ll see that everything about this best-selling minibike is designed with your child in mind. The fully-automatic 50cc engine delivers smooth power, while an adjustable throttle limiter allows you to restrict performance to suit your kid’s abilities. Bicycle style brake levers are easy to use, and the enclosed shaft drive is clean, quiet and requires little maintenance. |
| General moped information | |
|---|---|
| Model name | Yamaha PW 50 |
| Year of manufacture | 2006 |
| Type | Minibike, cross |
| Rating | 3.2 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 2.7 HP (2.0 kW)) @ 2700 RPM |
| Torque | 3.8 Nm (0.4 kgf-m or 2.8 ft.lbs) |
| Compression | 6.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 60 mm (2.4 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 70/90-M17 |
| Rear tire | 90/90-M14 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 37.0 kg (81.6 pounds) |
| Power/weight ratio | 0.0724 HP/kg |
| Seat height | 485 mm (19.1 inches) If adjustable, lowest setting. |
| Overall height | 715 mm (28.1 inches) |
| Overall length | 1245 mm (49.0 inches) |
| Overall width | 575 mm (22.6 inches) |
| Ground clearance | 105 mm (4.1 inches) |
| Wheelbase | 855 mm (33.7 inches) |
| Fuel capacity | 8.00 litres (2.11 US gallons) |
| Other specifications | |
| Starter | Kick |
