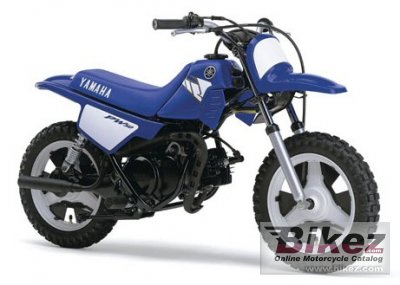

Yamaha PW 50 20042004 Yamaha PW 50 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| PW50’s zippy 50cc 2-stroke engine runs with fully automatic transmission, so there are no gears or clutch to operate. And to allow you to control the bike’s speed we’ve fitted an adjustable throttle limiter and exhaust restrictor. |
| General moped information | |
|---|---|
| Model name | Yamaha PW 50 |
| Model year | 2004 |
| Category | Minibike, cross |
| Rating | 3.2 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 2.7 HP (2.0 kW)) @ 2700 RPM |
| Torque | 3.8 Nm (0.4 kgf-m or 2.8 ft.lbs) |
| Compression | 6.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Valves per cylinder | 1 |
| Fuel system | Injection |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 60 mm (2.4 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 50 mm (2.0 inches) |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 37.0 kg (81.6 pounds) |
| Power/weight ratio | 0.0724 HP/kg |
| Seat height | 485 mm (19.1 inches) If adjustable, lowest setting. |
| Overall height | 715 mm (28.1 inches) |
| Overall length | 1245 mm (49.0 inches) |
| Overall width | 795 mm (31.3 inches) |
| Ground clearance | 105 mm (4.1 inches) |
| Wheelbase | 855 mm (33.7 inches) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha PW 50 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every moped
Bikez has discussion forums for every moped. View comments, questions and answers at the 2004 Yamaha PW 50 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha moped | |
Reliability for the 2004 Yamaha PW 50:  (71.0 out of 100)Click here for complete rating. |
|
