General information |
|
Model
|

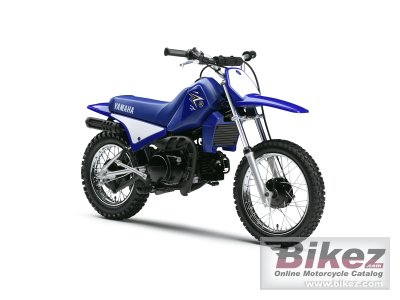

Yamaha PW80 |
|
Year
|
2012 |
|
Category
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
79.0 ccm (4.82 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Forward-inclined single cylinder, reed valve |
|
Compression
|
6.6:1 |
|
Bore x stroke
|
47.0 x 45.6 mm (1.9 x 1.8 inches) |
|
Fuel system
|
Carburettor. Mikuni VM15 |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate oil tank |
|
Cooling system
|
Air |
|
Gearbox
|
3-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Semi-automatic transmission |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube backbone |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
2.50-12 |
|
Rear tire
|
3.00-12 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
61.0 kg (134.5 pounds) |
|
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
|
Overall height
|
880 mm (34.6 inches) |
|
Overall length
|
1540 mm (60.6 inches) |
|
Overall width
|
640 mm (25.2 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1055 mm (41.5 inches) |
|
Fuel capacity
|
5.00 litres (1.32 US gallons) |
|
Oil capacity
|
0.80 litres (0.85 US quarts) |
|
Other specifications |
|
Color options
|
Blue/white |
|
Starter
|
Kick |
