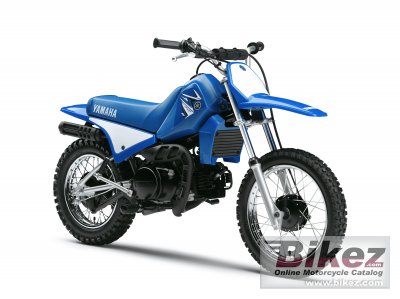

Yamaha PW80 20092009 Yamaha PW80 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Driven by a 79cc 2-stroke engine, the PW80 is one of the most rugged and reliable children’s fun bikes. For ease of use this good-looking lightweight comes with a rider-friendly 3-speed semi-automatic transmission which allows the new rider to develop their gear-changing skills without having to worry about a handlebar-mounted clutch lever. |
| General information | |
|---|---|
| Motorcycle name | Yamaha PW80 |
| Year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 79.0 ccm (4.82 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 4.7 HP (3.4 kW)) @ 4800 RPM |
| Torque | 6.3 Nm (0.6 kgf-m or 4.6 ft.lbs) |
| Compression | 6.6:1 |
| Bore x stroke | 47.0 x 45.6 mm (1.9 x 1.8 inches) |
| Fuel system | Carburettor. Mikuni VM15/1 |
| Ignition | CDI |
| Lubrication system | Yamaha Autolube |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc and automatic |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube backbone |
| Trail | 62 mm (2.4 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Swingarm (monocross) |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front tire | -. |
| Rear tire | -. |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 95 mm (3.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 61.0 kg (134.5 pounds) |
| Seat height | 635 mm (25.0 inches) If adjustable, lowest setting. |
| Overall height | 880 mm (34.6 inches) |
| Overall length | 1540 mm (60.6 inches) |
| Overall width | 640 mm (25.2 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1055 mm (41.5 inches) |
| Fuel capacity | 4.90 litres (1.29 US gallons) |
| Oil capacity | 0.70 litres (0.74 US quarts) |
| Other specifications | |
| Color options | Racing blue |
| Starter | Kick |
