General information |
Model
|

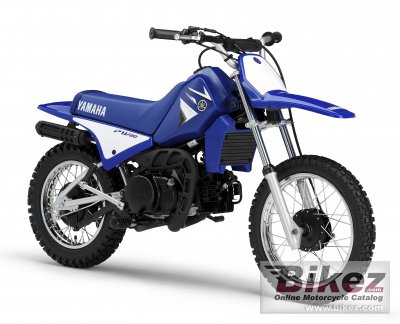

Yamaha PW80 |
Model year
|
2008 |
Category
|
Enduro / offroad |
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
79.0 ccm (4.82 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power output
|
4.7 HP (3.4 kW)) @ 4800 RPM |
Torque
|
6.3 Nm (0.6 kgf-m or 4.6 ft.lbs) |
Compression
|
6.6:1 |
Bore x stroke
|
47.0 x 45.6 mm (1.9 x 1.8 inches) |
Fuel system
|
Carburettor. Mikuni VM15/1 |
Ignition
|
CDI |
Lubrication system
|
Yamaha Autolube |
Cooling system
|
Air |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple-disc and automatic |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel tube backbone |
Front suspension
|
Telescopic forks |
Front wheel travel
|
110 mm (4.3 inches) |
Rear suspension
|
Swingarm (monocross) |
Rear wheel travel
|
95 mm (3.7 inches) |
Front brakes
|
Expanding brake (drum brake) |
Diameter
|
95 mm (3.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Dry weight
|
57.0 kg (125.7 pounds) |
Power/weight ratio
|
0.0823 HP/kg |
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
Overall height
|
880 mm (34.6 inches) |
Overall length
|
1540 mm (60.6 inches) |
Overall width
|
640 mm (25.2 inches) |
Ground clearance
|
185 mm (7.3 inches) |
Wheelbase
|
1055 mm (41.5 inches) |
Fuel capacity
|
4.90 litres (1.29 US gallons) |
Other specifications |
Starter
|
Kick |
