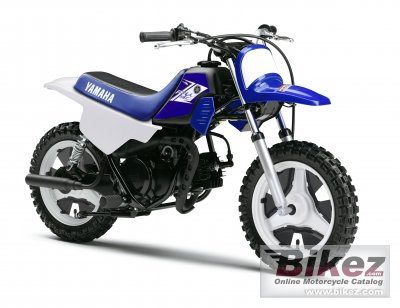

Yamaha PW50 20132013 Yamaha PW50 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Fully automatic transmission means no shifting required; the PW50 is a total twist-and-go package. Torque-tuned, spunky little 49cc two-stroke is built to thrill without intimidating beginners. A seat only 19.1 inches high makes this one the logical choice for the littlest rider in the group. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha PW50 |
| Model year | 2013 |
| Category | Enduro / offroad |
| Price as new | US$ 1440. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Engine details | Reed-valve inducted |
| Compression | 6.0:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet centrifugal automatic clutch |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 61 mm (2.4 inches) |
| Rear suspension | Unit swingarm |
| Rear wheel travel | 51 mm (2.0 inches) |
| Front tire | 2.50-10 |
| Rear tire | 2.50-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 39.0 kg (86.0 pounds) |
| Seat height | 485 mm (19.1 inches) If adjustable, lowest setting. |
| Overall height | 714 mm (28.1 inches) |
| Overall length | 1245 mm (49.0 inches) |
| Overall width | 574 mm (22.6 inches) |
| Ground clearance | 104 mm (4.1 inches) |
| Wheelbase | 856 mm (33.7 inches) |
| Fuel capacity | 1.90 litres (0.50 US gallons) |
| Other specifications | |
| Color options | Team Yamaha Blue/White |
| Factory warranty | 90 Day (Limited Factory Warranty) |
