Yamaha PW50 2009

2009 Yamaha PW50 specifications, pictures, reviews and rating

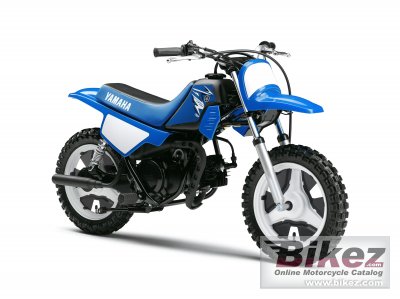

2009 Yamaha PW50. Picture credits - Yamaha. Submit more pictures.

2009 Yamaha PW50

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

Yamaha's profilation of this bike

Fully automatic transmission means no shifting required; the PW50 is a total twist-and-go package.

General moped information
Model:	Yamaha PW50
Year:	2009
Category:	Minibike, cross
Rating:	49.3 out of 100. Show full rating and compare with other bikes
Price as new (MSRP):	US$ 1199. Prices depend on country, taxes, accessories, etc.
Engine and transmission
Displacement:	49.00 ccm (2.99 cubic inches)
Engine type:	Single cylinder, two-stroke
Compression:	6.0:1
Bore x stroke:	40.0 x 39.2 mm (1.6 x 1.5 inches)
Fuel system:	Carburettor
Ignition:	CDI
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Shaft drive (cardan)
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic fork
Front wheel travel:	61 mm (2.4 inches)
Rear suspension:	Unit swingarm
Rear wheel travel:	51 mm (2.0 inches)
Front tyre:	70/10-M17
Rear tyre:	90/10-M14
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Weight incl. oil, gas, etc:	38.6 kg (85.0 pounds)
Seat height:	485 mm (19.1 inches) If adjustable, lowest setting.
Overall height:	714 mm (28.1 inches)
Overall length:	1,245 mm (49.0 inches)
Overall width:	574 mm (22.6 inches)
Ground clearance:	104 mm (4.1 inches)
Wheelbase:	856 mm (33.7 inches)
Fuel capacity:	2.00 litres (0.53 gallons)
Other specifications
Color options:	Team Yamaha Blue/White
Further information
Insurance costs	Get a US insurance quote from Progressive.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 09 Yamaha PW50 discussion group or the general Yamaha discussion group.
Related bikes	List related bikes for comparison of specs.
