Yamaha's profilation of this bike |
Twin-cylinder scooter performance, stylish deep blue elegance, Night Max does it all. Night Max is a full-spec TMax with brilliant engine performance and sporty chassis, created for the stylish traveller who wants to ride inter-city as well as inner-city, plus limited edition deep blue paintwork. |
General information |
Motorcycle name
|

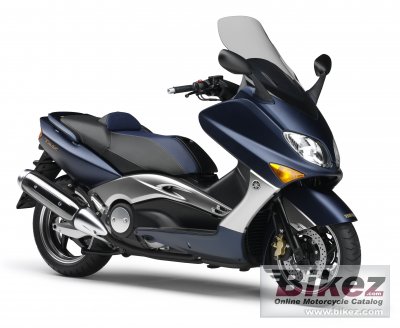

Yamaha Night Max |
Model year
|
2007 |
Category
|
Scooter |
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
499.0 ccm (30.45 cubic inches) |
Engine type
|
Twin, four-stroke |
Power output
|
42.9 HP (31.3 kW)) |
Torque
|
45.0 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 4600 RPM |
Compression
|
11.0:1 |
Bore x stroke
|
66.0 x 73.0 mm (2.6 x 2.9 inches) |
Fuel system
|
Injection. Electronic Fuel Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
T.C.I. |
Lubrication system
|
Dry sump |
Cooling system
|
Liquid |
Transmission type
|
Belt (final drive) |
Clutch
|
Wet, multiple-disc automatic |
Chassis, suspension, brakes and wheels |
Frame type
|
Diamond shaped |
Front suspension
|
Telescopic Fork |
Front wheel travel
|
120 mm (4.7 inches) |
Rear suspension
|
Swingarm |
Rear wheel travel
|
117 mm (4.6 inches) |
Front tire
|
120/70-M14 |
Rear tire
|
160/60-M15 |
Front brakes
|
Double disc |
Diameter
|
267 mm (10.5 inches) |
Rear brakes
|
Single disc |
Diameter
|
267 mm (10.5 inches) |
Physical measures and capacities |
Dry weight
|
208.0 kg (458.6 pounds) |
Power/weight ratio
|
0.2063 HP/kg |
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
Overall height
|
1410 mm (55.5 inches) |
Overall length
|
2235 mm (88.0 inches) |
Overall width
|
775 mm (30.5 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1575 mm (62.0 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Starter
|
Electric |
