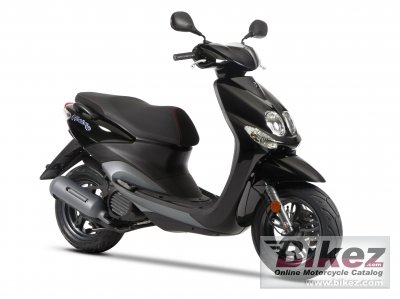

Yamaha Neos 4T 20132013 Yamaha Neos 4T specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Choose a Neo’s 4 and you choose style and ease - and a 50cc 4-stroke engine that is clean, quiet and reliable. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha Neos 4T |
| Year of manufacture | 2013 |
| Type | Scooter |
| Rating | 3.2 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.4 ccm (3.01 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 3.1 HP (2.2 kW)) @ 7000 RPM |
| Torque | 3.2 Nm (0.3 kgf-m or 2.3 ft.lbs) @ 7000 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 38.0 x 43.6 mm (1.5 x 1.7 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Hydraulic unit swing |
| Rear wheel travel | 60 mm (2.4 inches) |
| Front tire | 120/70-12 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 95.0 kg (209.4 pounds) |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height | 1118 mm (44.0 inches) |
| Overall length | 1840 mm (72.4 inches) |
| Overall width | 663 mm (26.1 inches) |
| Ground clearance | 154 mm (6.1 inches) |
| Wheelbase | 1275 mm (50.2 inches) |
| Fuel capacity | 5.40 litres (1.43 US gallons) |
| Oil capacity | 0.80 litres (0.85 US quarts) |
| Other specifications | |
| Color options | Frozen titanium, white, black |
| Starter | Electric & kick |
| Instruments | Digital |
| Carrying capacity | Lockable helmet compartment |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Brake fluid | DOT 4 |
| Spark plugs | NGK CR7E, NGK CR7EIX |
| Idle speed | 2000 - 2200 RPM |
| Tire pressure front | 25 PSI (1.8 Bar or 175 kPa) |
| Tire pressure rear | 29 PSI (2 Bar or 200 kPa) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
