General moped information |
|
Model name
|

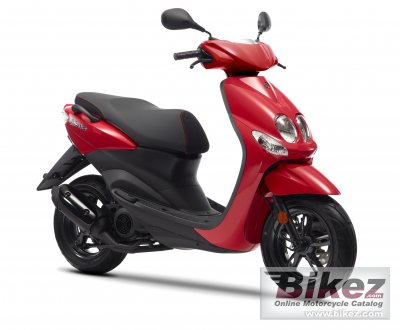

Yamaha Neos |
|
Year
|
2013 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.2 ccm (3.00 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
2.8 HP (2.0 kW)) @ 6750 RPM |
|
Torque
|
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
|
Compression
|
10.7:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Gurtner PY12 |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
70 mm (2.8 inches) |
|
Rear suspension
|
Hydraulic unit swing |
|
Rear wheel travel
|
60 mm (2.4 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Wheels
|
Alloy wheels |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
88.0 kg (194.0 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1118 mm (44.0 inches) |
|
Overall length
|
1840 mm (72.4 inches) |
|
Overall width
|
663 mm (26.1 inches) |
|
Ground clearance
|
146 mm (5.7 inches) |
|
Wheelbase
|
1275 mm (50.2 inches) |
|
Fuel capacity
|
6.10 litres (1.61 US gallons) |
|
Other specifications |
|
Color options
|
White, red, black |
|
Starter
|
Electric & kick |
|
Instruments
|
LCD instrument panel |
|
Light
|
Twin headlights |
|
Carrying capacity
|
Underseat helmet locker |
