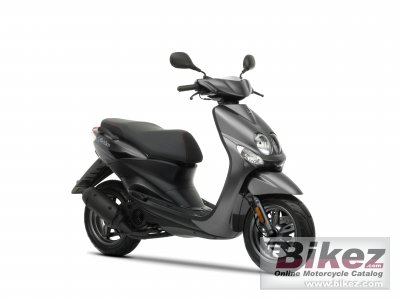

Yamaha's profilation of this bike |
Just press the button, twist the throttle and go.
Neo’s is full of style, with its elegant bodywork, twin-eye headlights and orange backlit LCD instrument panel. And it’s packed with practical features that make the most of your time so you can make more of your life, like the comfy dual seat and spacious underseat helmet box. |
General moped information |
Model name
|
Yamaha Neos |
Model year
|
2010 |
Category
|
Scooter |
Rating
|
3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
49.2 ccm (3.00 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power output
|
2.8 HP (2.0 kW)) @ 6750 RPM |
Torque
|
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
Compression
|
10.7:1 |
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
Ignition
|
CDI |
Lubrication system
|
Separate lubrification |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Rear suspension
|
Unit swing |
Front tire
|
120/70-12 |
Rear tire
|
130/70-12 |
Front brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
88.0 kg (194.0 pounds) |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Overall height
|
1118 mm (44.0 inches) |
Overall length
|
1840 mm (72.4 inches) |
Overall width
|
663 mm (26.1 inches) |
Ground clearance
|
146 mm (5.7 inches) |
Wheelbase
|
1275 mm (50.2 inches) |
Fuel capacity
|
6.10 litres (1.61 US gallons) |
Other specifications |
Color options
|
Black, white, gray |
Starter
|
Electric & kick |
Update specs | Report missing specs or required updates. |
