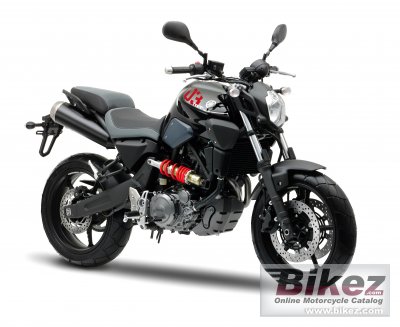

Yamaha MT-03 20132013 Yamaha MT-03 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Kodo is a Japanese noun that means pulse or soulbeat. It is not a simple concept to explain, but it is an easy thing to feel. Imagine the atmosphere created by the beat of Japanese big drums and you´ll begin to get the idea. |
| General information | |
|---|---|
| Model | Yamaha MT-03 |
| Year model | 2013 |
| Type | Naked bike |
| Rating | 3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 660.0 ccm (40.27 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 47.3 HP (34.5 kW)) @ 6250 RPM |
| Torque | 56.2 Nm (5.7 kgf-m or 41.5 ft.lbs) @ 5730 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 100.0 x 84.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple disc |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel tube truss diamond |
| Rake (fork angle) | 26.0° |
| Trail | 120 mm (4.7 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Linked monoshock with spring preload adjustment |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-17 |
| Rear tire | 160/60-17 |
| Front brakes | Double disc. Hydraulic |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Hydraulic |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 175.0 kg (385.8 pounds) |
| Weight incl. oil, gas, etc | 192.4 kg (424.2 pounds) |
| Power/weight ratio | 0.2705 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Ground clearance | 200 mm (7.9 inches) |
| Wheelbase | 1420 mm (55.9 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 3.40 litres (3.59 US quarts) |
| Other specifications | |
| Color options | Black, white |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Yamaha MT-03 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
