General information |
|
Motorcycle name
|

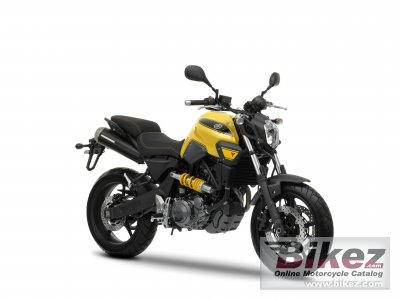

Yamaha MT-03 |
|
Year of manufacture
|
2009 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
660.0 ccm (40.27 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
47.3 HP (34.5 kW)) @ 6250 RPM |
|
Torque
|
56.2 Nm (5.7 kgf-m or 41.5 ft.lbs) @ 5730 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
100.0 x 84.0 mm (3.9 x 3.3 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube truss diamond |
|
Trail
|
97 mm (3.8 inches) |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/60-17 |
|
Front brakes
|
Double disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
192.4 kg (424.2 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1115 mm (43.9 inches) |
|
Overall length
|
2070 mm (81.5 inches) |
|
Overall width
|
860 mm (33.9 inches) |
|
Ground clearance
|
200 mm (7.9 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Oil capacity
|
3.40 litres (3.59 US quarts) |
|
Other specifications |
|
Color options
|
Yellow, black, red |
|
Starter
|
Electric |
