General information |
|
Model name
|

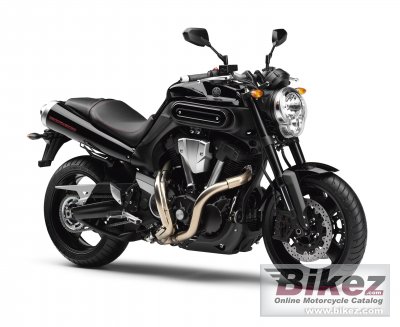

Yamaha MT-01 |
|
Model year
|
2012 |
|
Category
|
Sport |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1670.0 ccm (101.90 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
90.0 HP (65.7 kW)) @ 4750 RPM |
|
Torque
|
150.3 Nm (15.3 kgf-m or 110.9 ft.lbs) @ 3750 RPM |
|
Compression
|
8.4:1 |
|
Bore x stroke
|
97.0 x 113.0 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
TCI |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc |
|
Driveline
|
Constant Mesh |
|
Exhaust system
|
EXUP exhaust and twin titanium mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Alu CF-die cast, double cradle |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Swing arm (link suspension) |
|
Rear wheel travel
|
117 mm (4.6 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/50-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
246.0 kg (542.3 pounds) |
|
Weight incl. oil, gas, etc
|
265.0 kg (584.2 pounds) |
|
Power/weight ratio
|
0.3659 HP/kg |
|
Seat height
|
825 mm (32.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
2185 mm (86.0 inches) |
|
Overall width
|
800 mm (31.5 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1525 mm (60.0 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Oil capacity
|
5.00 litres (5.28 US quarts) |
|
Other specifications |
|
Color options
|
Midnight black |
|
Starter
|
Electric |
