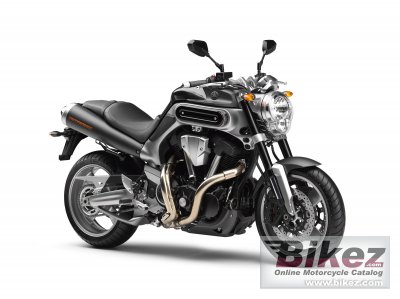

Yamaha MT-01 20092009 Yamaha MT-01 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| It’s a genius idea – unite a hi-tech 1,670cc V-twin with an aluminium sports frame and cutting-edge suspension and brakes – and you’ve got a sports riding revolution. |
| General information | |
|---|---|
| Model name | Yamaha MT-01 |
| Year | 2009 |
| Category | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1670.0 ccm (101.90 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 88.9 HP (64.9 kW)) @ 4750 RPM |
| Torque | 150.3 Nm (15.3 kgf-m or 110.9 ft.lbs) @ 3750 RPM |
| Compression | 8.4:1 |
| Bore x stroke | 97.0 x 113.0 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. Electronic Fuel Injection |
| Fuel control | Overhead Valves (OHV) |
| Ignition | TCI |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Alu CF-die cast, double cradle |
| Trail | 103 mm (4.1 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Swing arm (link suspension) |
| Rear wheel travel | 117 mm (4.6 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/50-ZR17 |
| Front brakes | Double disc |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 265.0 kg (584.2 pounds) |
| Seat height | 825 mm (32.5 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2185 mm (86.0 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1525 mm (60.0 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Oil capacity | 5.00 litres (5.28 US quarts) |
| Other specifications | |
| Color options | Midnight black, Graphite |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha MT-01 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
