General information |
|
Model
|

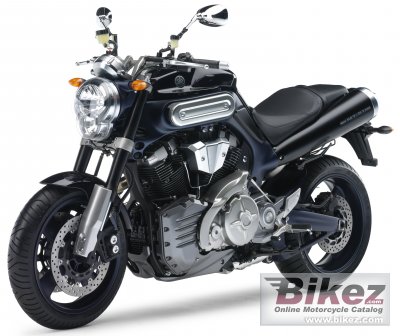

Yamaha MT-01 |
|
Model year
|
2005 |
|
Category
|
Naked bike |
|
Rating
|
3.8 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
1670.0 ccm (101.90 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
90.0 HP (65.7 kW)) @ 4750 RPM |
|
Torque
|
150.1 Nm (15.3 kgf-m or 110.7 ft.lbs) @ 3750 RPM |
|
Compression
|
8.4:1 |
|
Bore x stroke
|
97.0 x 113.0 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Dry sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Newly designed aluminium CF die-cast sports frame, R1-type die-cast aluminium subframe |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
Fully-adjustable R1-derived upside down 43mm forks |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Horizontal fully-adjustable rear shock |
|
Rear wheel travel
|
117 mm (4.6 inches) |
|
Front tire
|
120/70-ZR17 M/C (58W) |
|
Rear tire
|
190/50-ZR17 M/C (73W) |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
240.0 kg (529.1 pounds) |
|
Power/weight ratio
|
0.3750 HP/kg |
|
Front percentage of weight
|
47.0 |
|
Rear percentage of weight
|
53.0 |
|
Overall height
|
825 mm (32.5 inches) |
|
Overall length
|
2185 mm (86.0 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1525 mm (60.0 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Reserve fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
