General information |
|
Model name
|

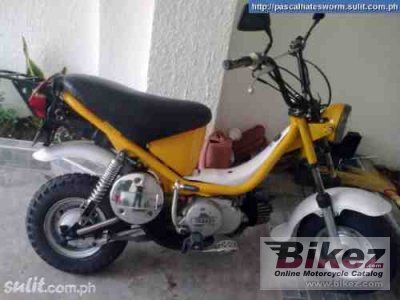

Yamaha LB 70 Chappy |
|
Year of manufacture
|
1989 |
|
Type
|
Scooter |
|
Rating
|
2.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
65.0 ccm (3.97 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
4.8 HP (3.5 kW)) @ 6000 RPM |
|
Torque
|
5.9 Nm (0.6 kgf-m or 4.4 ft.lbs) @ 4000 RPM |
|
Top speed
|
72.4 km/h (45.0 mph) |
|
Maximum RPM
|
6000 |
|
Compression
|
5.8:1 |
|
Bore x stroke
|
47.0 x 42.0 mm (1.9 x 1.7 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Mikuni |
|
Fuel control
|
Membrane |
|
Ignition
|
mechanical |
|
Lubrication system
|
Autolube |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
automatic constant mesh |
|
Fuel consumption
|
3.00 litres/100 km (33.3 km/l or 78.41 mpg) |
|
Greenhouse gases
|
69.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
single pipe with catalyzer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo steel |
|
Front suspension
|
standard forks |
|
Rear suspension
|
monoshock |
|
Front tire
|
4.00-8-4PR |
|
Rear tire
|
4.00-8-4PR |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
73.0 kg (160.9 pounds) |
|
Power/weight ratio
|
0.0658 HP/kg |
|
Seat height
|
710 mm (28.0 inches) If adjustable, lowest setting. |
|
Overall height
|
925 mm (36.4 inches) |
|
Overall length
|
1565 mm (61.6 inches) |
|
Overall width
|
665 mm (26.2 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1050 mm (41.3 inches) |
|
Fuel capacity
|
3.50 litres (0.92 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Color options
|
yellow |
|
Starter
|
Kick |
|
Comments
|
Real nice mini chopper |
