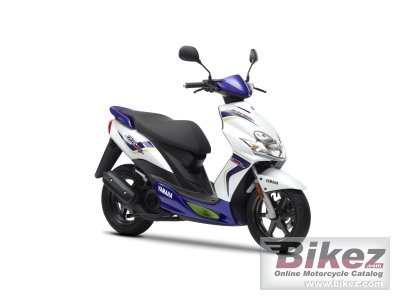

Yamaha JogR 20122012 Yamaha JogR specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Set your imagination free: the JogR takes the effort out of riding but keeps all the fun. It’s lightweight, but still strong enough to handle the city. And it´s speedy, with enough agility to beat the traffic. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha JogR |
| Year | 2012 |
| Category | Scooter |
| Rating | 3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 2.7 HP (2.0 kW)) @ 7000 RPM |
| Torque | 2.5 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 7000 RPM |
| Compression | 11.6:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Gurtner PY12 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit Swing |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Wheels | 6-spoke aluminium wheels |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 81.0 kg (178.6 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | White/blue, purple/black |
| Starter | Electric & kick |
| Carrying capacity | Storage compartment and luggage hook |
