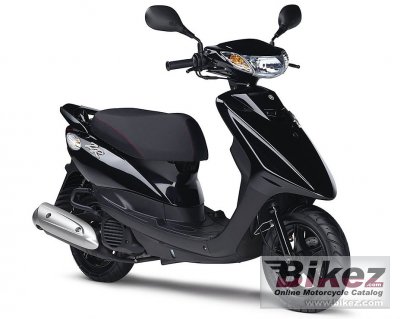

Yamaha Jog ZR 20122012 Yamaha Jog ZR specifications, pictures, reviews and rating |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha Jog ZR |
| Year of manufacture | 2012 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 3.4 HP (2.5 kW)) @ 7000 RPM |
| Torque | 3.9 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM |
| Top speed | 105.0 km/h (65.2 mph) |
| Compression | 12.0:1 |
| Bore x stroke | 38.0 x 43.5 mm (1.5 x 1.7 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry centrifugal |
| Fuel consumption | 1.52 litres/100 km (65.8 km/l or 154.75 mpg) |
| Greenhouse gases | 35.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel backbone |
| Rake (fork angle) | 24.0° |
| Trail | 70 mm (2.8 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 60 mm (2.4 inches) |
| Front tire | 90/90-10 |
| Rear tire | 90/90-10 |
| Front brakes | Single disc. Bremo |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Wheels | Die cast aluminium |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 83.0 kg (183.0 pounds) |
| Seat height | 725 mm (28.5 inches) If adjustable, lowest setting. |
| Overall height | 1035 mm (40.7 inches) |
| Overall length | 1685 mm (66.3 inches) |
| Overall width | 645 mm (25.4 inches) |
| Ground clearance | 90 mm (3.5 inches) |
| Wheelbase | 1160 mm (45.7 inches) |
| Fuel capacity | 4.40 litres (1.16 US gallons) |
| Oil capacity | 0.80 litres (0.85 US quarts) |
| Other specifications | |
| Color options | Black, white |
| Starter | Electric & kick |
| Carrying capacity | Helmet storage under seat |
| Comments | Sold in Asia. |
