Yamaha Jog ZR 20112011 Yamaha Jog ZR specifications, pictures, reviews and rating |

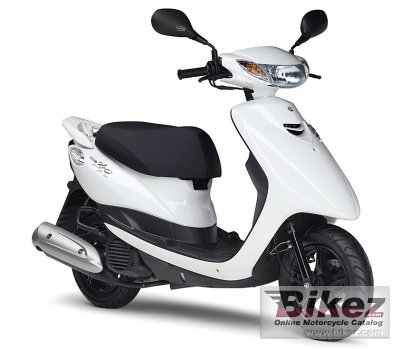

 2011 Yamaha Jog ZR. Picture credits - Yamaha. Submit more pictures.
|
| General moped information | |
|---|---|
| Model | Yamaha Jog ZR |
| Year | 2011 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 3.4 HP (2.5 kW)) @ 7000 RPM |
| Torque | 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
| Top speed | 105.0 km/h (65.2 mph) |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 60 mm (2.4 inches) |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc. Bremo |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 85.0 kg (187.4 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall length | 1740 mm (68.5 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | Black, white, red |
| Starter | Electric & kick |
| Carrying capacity | helmet storage under seat |
| Comments | Sold in Asia. |
