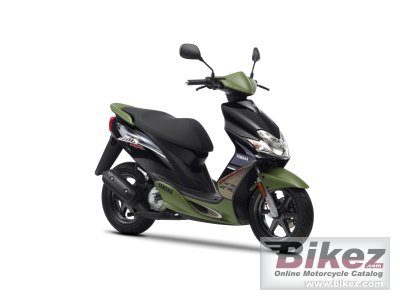

2012 Yamaha Jog RR

Yamaha Jog RR 2012


2012 Yamaha Jog RR specifications, pictures, reviews and rating

Yamaha's profilation of this bike
Looking for added excitement as you cruise the city streets? The JogRR’s liquid-cooled engine produces good horsepower and torque meaning that it’s adrenalin all the way.

General moped information
Motorcycle name Yamaha Jog RR
Model year 2012
Category Scooter
Rating 3.6  View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike.
Engine and transmission
Displacement 49.0 ccm (2.99 cubic inches)
Engine type Single cylinder, two-stroke
Power output 3.4 HP (2.5 kW)) @ 7000 RPM
Torque 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM
Compression 11.4:1
Bore x stroke 40.0 x 39.2 mm (1.6 x 1.5 inches)
Fuel system Carburettor. Gurtner PY12
Ignition CDI
Lubrication system Separate lubrication
Cooling system Liquid
Gearbox Automatic
Transmission type Belt (final drive)
Chassis, suspension, brakes and wheels
Frame type Rigid asymmetric frame for easy manoeuvring
Front suspension Telescopic fork
Front wheel travel 70 mm (2.8 inches)
Rear suspension Unit swing
Rear wheel travel 60 mm (2.4 inches)
Front tire 110/70-12
Rear tire 120/70-12
Front brakes Single disc
Diameter 190 mm (7.5 inches)
Rear brakes Expanding brake (drum brake)
Diameter 110 mm (4.3 inches)
Wheels Aluminium 6-spoke
Physical measures and capacities
Weight incl. oil, gas, etc 84.0 kg (185.2 pounds)
Seat height 770 mm (30.3 inches) If adjustable, lowest setting.
Overall length 1740 mm (68.5 inches)
Overall width 675 mm (26.6 inches)
Ground clearance 132 mm (5.2 inches)
Wheelbase 1210 mm (47.6 inches)
Fuel capacity 5.50 litres (1.45 US gallons)
Other specifications
Color options Black, white, red
Starter Electric & kick
Carrying capacity Under-seat helmet storage compartment
