General moped information |
|
Model name
|

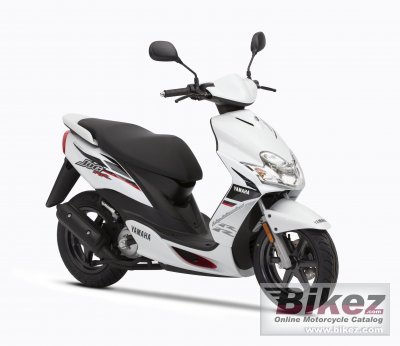

Yamaha Jog RR |
|
Year of manufacture
|
2011 |
|
Type
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
3.4 HP (2.5 kW)) @ 7000 RPM |
|
Torque
|
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
|
Compression
|
11.4:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
70 mm (2.8 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
60 mm (2.4 inches) |
|
Front tire
|
110/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
84.0 kg (185.2 pounds) |
|
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1065 mm (41.9 inches) |
|
Overall length
|
1740 mm (68.5 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Ground clearance
|
132 mm (5.2 inches) |
|
Wheelbase
|
1210 mm (47.6 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Color options
|
Black, white, red |
|
Starter
|
Electric & kick |
|
Carrying capacity
|
Under-seat helmet storage compartment |
