Yamaha Jog RR 20092009 Yamaha Jog RR specifications, pictures, reviews and rating |

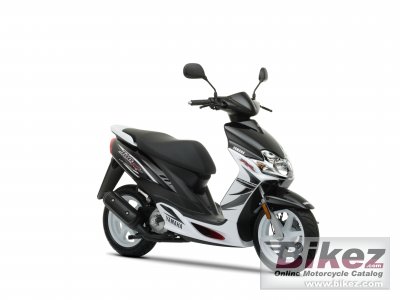

 2009 Yamaha Jog RR. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Its liquid-cooled 50cc two-stroke engine gives the RR over 25% more power and torque than the air-cooled JogR, bringing an even sharper performance focus to the Jog experience. |
| General moped information | |
|---|---|
| Model name | Yamaha Jog RR |
| Year of manufacture | 2009 |
| Type | Scooter |
| Rating | 3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 3.4 HP (2.5 kW)) @ 7000 RPM |
| Torque | 3.3 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 6500 RPM |
| Compression | 11.4:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 60 mm (2.4 inches) |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 84.0 kg (185.2 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | Midnight black |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha Jog RR discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2009 Yamaha Jog RR discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha moped | |
Design and look for the 2009 Yamaha Jog RR:  (79.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
