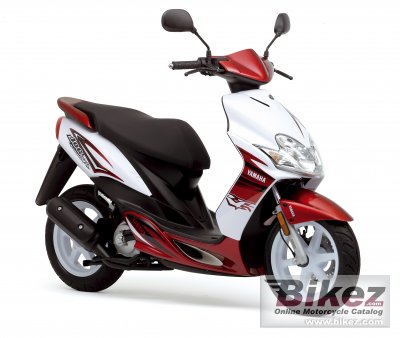

Yamaha's profilation of this bike |
With sharp race graphics covering its aerodynamic bodywork the Jog RR is no wallflower. It is a true sports scooter with fine handling and a revvy liquid-cooled engine. |
General moped information |
Model
|
Yamaha Jog RR |
Year model
|
2007 |
Type
|
Scooter |
Rating
|
3.6 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
49.0 ccm (2.99 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Effect
|
2.8 HP (2.1 kW)) @ 7500 RPM |
Torque
|
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
Compression
|
11.4:1 |
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
Lubrication system
|
Separate lubrication |
Cooling system
|
Liquid |
Transmission type
|
Belt (final drive) |
Clutch
|
Automatic centrifugal |
Chassis, suspension, brakes and wheels |
Frame type
|
- |
Front suspension
|
Hydraulic and telescopic fork |
Rear suspension
|
Hydraulic unit swing |
Front tire
|
110/70-12 |
Rear tire
|
120/70-12 |
Front brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Dry weight
|
79.0 kg (174.2 pounds) |
Power/weight ratio
|
0.0359 HP/kg |
Seat height
|
770 mm (30.3 inches) If adjustable, lowest setting. |
Overall length
|
1740 mm (68.5 inches) |
Ground clearance
|
132 mm (5.2 inches) |
Wheelbase
|
1210 mm (47.6 inches) |
Fuel capacity
|
5.50 litres (1.45 US gallons) |
Other specifications |
Starter
|
Electric & kick |
