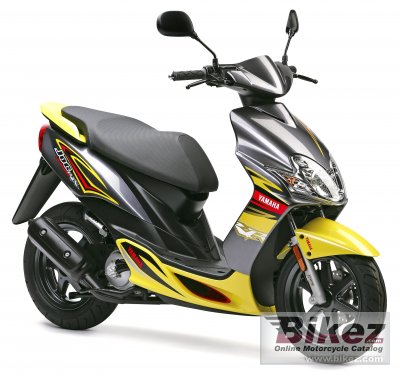

Yamaha Jog RR 20062006 Yamaha Jog RR specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Practical city transport with a sporting edge? It sounds unlikely, until you meet Jog RR, for the rider who wants it all! The style is stunning, from the stand-out front light cluster to the integrated rear lights, and practical too, with sufficient storage for a full face helmet and room for a passenger. But with its horizontal air intake and two-stroke engine with liquid-cooling, this is a scooter with a true sporting edge, offering stable and accurate handling from its 12” wheels and firm suspension. |
| General moped information | |
|---|---|
| Model name | Yamaha Jog RR |
| Model year | 2006 |
| Category | Scooter |
| Rating | 3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 2.8 HP (2.1 kW)) @ 7500 RPM |
| Torque | 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
| Compression | 11.4:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Ignition | Electric (CDI) |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front suspension system |
| Front suspension | Hydraulic and telescopic fork |
| Rear suspension | Single Shock |
| Front tire | 110/70-12 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 77.9 kg (171.7 pounds) |
| Power/weight ratio | 0.0365 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
