Yamaha Jog R 20112011 Yamaha Jog R specifications, pictures, reviews and rating |

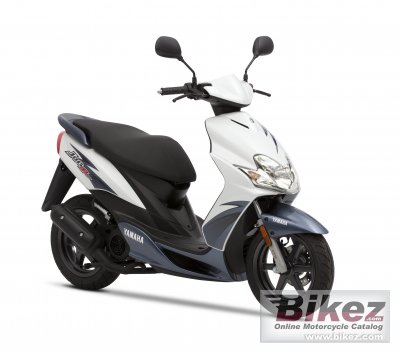

 2011 Yamaha Jog R. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Take the driving seat and you´ll see that the JogR is a featherweight wonder. Its assymetric frame is light, strong and rigid, providing agile handling and easy manoeuvrability. |
| General moped information | |
|---|---|
| Model | Yamaha Jog R |
| Year | 2011 |
| Category | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 2.7 HP (2.0 kW)) @ 7000 RPM |
| Torque | 2.5 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 7000 RPM |
| Compression | 11.6:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit Swing |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 81.0 kg (178.6 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | White/red, white/grey |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Yamaha Jog R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the moped's reliability, repair costs, etc. Show any 2011 Yamaha Jog R for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such mopeds are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha moped | |
Offroad capabilities for the 2011 Yamaha Jog R:  (43.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
