Yamaha Jog R 20102010 Yamaha Jog R specifications, pictures, reviews and rating |

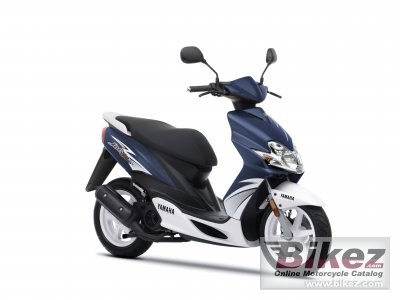

 2010 Yamaha Jog R. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Weighing just 81Kg, the JogR is a featherweight wonder. Its rigid frame is light and strong, providing secure handling and easy manoeuvrability. 12inch aluminium wheels fitted with wide tyres provide incredible grip – while the front disc/rear drum brake set-up delivers smooth stopping power. |
| General moped information | |
|---|---|
| Model name | Yamaha Jog R |
| Year model | 2010 |
| Type | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 2.7 HP (2.0 kW)) @ 7000 RPM |
| Torque | 2.8 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 7000 RPM |
| Compression | 11.6:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Ignition | CDI |
| Lubrication system | Separate lubrification |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 60 mm (2.4 inches) |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 81.0 kg (178.6 pounds) |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | White, blue |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Yamaha Jog R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2010 Yamaha Jog R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha moped | |
Design and look for the 2010 Yamaha Jog R:  (74.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
