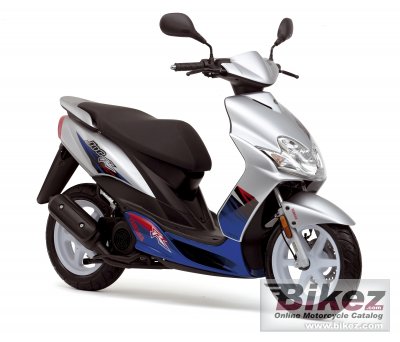

Yamaha Jog R 20072007 Yamaha Jog R specifications, pictures, reviews and rating |
 2007 Yamaha Jog R. Picture submitted by anonymous user.. Submit more pictures. |
|
| General moped information | |
|---|---|
| Model name | Yamaha Jog R |
| Year model | 2007 |
| Type | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 2.2 HP (1.6 kW)) @ 6750 RPM |
| Torque | 2.5 Nm (0.3 kgf-m or 1.8 ft.lbs) @ 4500 RPM |
| Compression | 10.2:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. Gurtner PY-12 |
| Ignition | CDI |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | swingarm with shock |
| Front tire | 110/70-12 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 76.0 kg (167.6 pounds) |
| Power/weight ratio | 0.0283 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1740 mm (68.5 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 132 mm (5.2 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Yamaha Jog R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2007 Yamaha Jog R discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha moped | |
Design and look for the 2007 Yamaha Jog R:  (79.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
